The penultimate museum visited on this Boston to Florida trip.

After the 114 noted at Warner Robbins, Polk City, Fantasy of flight museum produced 168. Like Warner, I have written to our guide and hope that he can confirm our outstanding.

Whilst closed to the public, the museum does allow private tours, the information and prices for these can be found on the museum website.

Having only seen a few of the aircraft from the outside when I visited in 2014, I was very happy to pay the tour cost. We were taken to all parts of the facility, including the storage area’s.
Our guide had worked here for many years and his knowledge was amazing. Added with anecdotal stores of events gone by, it was a very interesting and enjoyable experience. Highly recommended by our group of five…

My outstanding or items that require confirmation are marked with *** with a photo link.

My photos at: https://www.flickr.com/photos/jlt_egcc74/albums/72177720304619250

Regards

John

Outside:
N600RC Douglas DC-3 A 228C C/n 2193 Unmarked Eyecatcher by main I-4 Freeway
N974R Lockheed L-1649 A Starliner C/n 1040 Displayed near entrance
N96UC Consolidated PBY-5A Catalina C/n 1737 Parked on Main Apron

Office Entrance:
N30KW White Der Jager D.IX C/n 003

Hangar 1:
N2009V Fokker Dr.1 Replica C/n 065 Marked 425/17
N643AV Avro 643 Cadet II C/n 1060 Marked VH-PRU/A6-25
N814ML Short Sunderland V C/n SH.974 Marked G-BJHS/ML814
N9548Z Grumman TBM-3E Avenger C/n 4503 Marked NL95487
N1267B Pitcairn PA-18 C/n G-65 Marked NC1267B
N5798N Piper L-4J Grasshopper C/n 13623 Marked 54883/JK
N63230 Stinson L-1 A Vigilant C/n 40-3102 Marked NL63230/03102
03 Cockpit Simulator C/n N/a
06 Cockpit Simulator C/n N/a
N1290 Nieuport 17 Replica C/n LCNC1967 Marked N1653
N1204 North American P-51 C Mustang C/n 103-26385 Marked NX1204/72
N6205 Sopwith Pup Replica C/n 5459 Marked N6205
N50074 Polikarpov CSS-13 C/n 0365 Marked NX50074/10 white
N222FM Grumman FM-2 Wildcat C/n 5795 Marked 86956/4
N11170 Stinson SM.6000 B C/n 5023 Marked NC11170
N1913B US Home Built Light Aircraft/Benoist C/n TJ-1
N1606 SNCAN Stampe SV.4 C C/n 190 Marked NX1606/6
N40BJ Bucker Bu.133 C Jungmeister C/n 4 Marked YR-PAX/NX40BJ

*** N1917T Thomas-Morse S.4 C Scout C/n 633 Unmarked (Unsure if this is correct)

*** Unmarked 1911 Curtiss Model D Headless Pusher C/n Unknown Unmarked (No ID for this one) https://www.flickr.com/photos/jlt_egcc74/52577914988/in/album-72177720304619250/
N3931Y North American T-6G Texan C/n 168-415 Marked 33311/245B
N6313S Sopwith 7F.1 Replica C/n 0009 Marked E8102
N181BU Zlin Z.381 Bestmann C/n 461 Marked 461/AM+YA
N9651 Ford 5-AT-B Tri-Motor C/n 5-AT-34 Coded 5
N1944A Douglas DC-3 C-47A-80-DL C/n 19677 Marked 315211/J8-B
00 Cockpit Simulator C/n N/a
N19175 Albatros Flugzeugwerke D.Va Replica C/n 1267 Unmarked
N269ZW Fokker D.VII C/n FM-15 Marked NX269ZW
N41455 Bucker Bu.131 B Jungmann C/n 78 Marked NX41455/GD+EG
N69FF Aerostar S.60A Raven Balloon C/n S60A-3224

Hangar 2:
N4297J Martin B-26 Marauder C/n 40-1464
N174V Curtiss-Wright Travel Air 4000 C/n 1365 Marked NC174V
N19RX Curtiss-Wright CW-A-19R C/n 19R-20 Marked 120
N10967 Curtiss-Wright CW-1 Junior C/n 1145 Marked NC10967
N69MX Eipper Quicksilver C/n 423
N50V Sikorsky S-39 C C/n 912 Marked NC-50V

N436WR Commonwealth CA-16 Wirraway III C/n 1156 Marked A20-426/NX436WR Coded BF-B
N147DP Bell Helicopters TH-13 M Sioux C/n 1685 Marked 56-143170
N53WC Classic Aircraft Corp YMF-5 C Waco Super YMF C/n F5C-074
N1943J North American TB-25 N Mitchell C/n 108-35072 Unmarked Coded 152
N513L Vultee BT-13 A Valiant C/n 11630 Coded 45
N52962 Beech D17S Traveller C/n 6880
N156FS Fieseler Fi.156 C-3 Storch C/n 110064 Marked NX156FS/Coded KF+XL
N2404 Springfield JN-4 D Jenny C/n 5360 Marked AS2404/5360 & NX2404
N909JJ Early Bird JN-4 D Jenny Replica C/n WCP-004 Marked NX909JJ

Workshop in Hangar 2:
N2825D Standard J-1 C/n 1582 Marked NX2825D
N6452 Sopwith F.1 Camel Replica C/n 6452 Unmarked Bare frame hanging in Restoration Shop
N607LA Hawker Tempest Mk.II C/n LA607 Marked LA607/HF-T
N7027E Hawker Tempest Mk.V C/n EJ693 Unmarked

Balcony Hangar 2:
Unmarked Morane-Saulnier -Brock Monoplane C/n Unknown Unmarked Frame on balcony
Unknown Avro Lancaster Parts

Outside between hangars:
N40415 Martin 4-0-4 C/n 14119

Restoration Hangar:
N211NX Ryan NYP Replica C/n DC-001 Marked N-X-211 Named Spirit of St Louis
*** ??? Bare wooden frame C/n Photo:

N108KW Messerschmitt Bf.108 B-1 Taifun C/n 1914 Unmarked Bare metal Ex CC-PWA
N1NN Stephens Super Akro C/n 001
*** ??? Unmarked Avid Flyer? on Floats C/n Unknown Photo: https://www.flickr.com/photos/jlt_egcc74/52577931178/in/album-72177720304619250/

***??? Under covers Aircraft Possibly N44FW Focke-Wulf Fw.44 J C/n 138
Photo: https://www.flickr.com/photos/jlt_egcc74/52576938152/in/album-72177720304619250/
https://www.flickr.com/photos/jlt_egcc74/52577401711/in/album-72177720304619250/

Storage Unit 1:
Avro Lancaster wing/JU-87 wing/Hurricane wing Ex Russian (Lend/Lease)

Storage Unit 2:
N3182G Avro 504 J C/n B3182 Marked B3182
Unmarked Mikoyan-Gurevich MiG-15 C/n Unknown
N3248G Douglas RB-26 C Invader C/n 28869 Unmarked
***48366 Large Fuselage & tail section with 48366. Is this the Unmarked Consolidated PBY-5A Catalina fuselage?
N440 Sikorsky S-43 W C/n 4327. Howard R Hughes. Purchased for around the world test plane for Spruce Goose.
N300KW Weeks S1-WS Solution C/n 001

Storage Unit 3:
N47EM W.A.R. P-47 Thunderbolt Replica C/n 40 Coded 147
N358DH Airco DH-4 BM C/n 358 Marked US Mail 358 on side of fuselage.
N4311Z Bristol Bolingbroke IVTT C/n 11-880-202 Marked 9983
N4260C Bristol Bolingbroke IVD C/n 11-880-203 Unmarked
N7626C Grumman F7F -3 Tigercat C/n C.146 Unmarked

Storage Unit 4:
Unmarked Tupolev Tu-2 C/n Unknown Cockpit only
N4301U AVIC Y-5 C/n Unknown Marked NX4301U
*** Unmarked Sikorsky S-55 B?? C/n Unknown Unmarked

Storage Unit 5:
Various Aircraft engines

Outside Golden Hill Storage Facility: https://www.flickr.com/photos/jlt_egcc74/52577549681/in/album-72177720304619250/
Blimps
Blimps
Blimps
DC4
DC4

Golden Hill Storage Facility Hangar A
Storage nearest to road:

G-BCWL Westland Lysander IIIA C/n 1244 Marked V9545/BA-C
G-BFHG Junkers CASA 352L C/n 155 Unmarked Coded VK+AZ
N32313 Grumman F9F -2 Panther C/n K.125 Coded 420
N92KC Beech AT-11 Kansan C/n 5064 Unmarked
N102BL Buhl LA-1 Bull-Pup C/n 102 Marked NC-11161
N2145 Orenco F C/n 45 Coded A-197
N51382 Douglas A-24 B Dauntless C/n 17482 Could only see the Code 4
VH-WIR Commonwealth CA-16 Wirraway III C/n 1101 Marked A20-649
N91448 Bell RP-63 C Kingcobra C/n 33-766 Coded 100 white
N65269 Demoiselle A Replica Santos Dumont XX C/n 1
N14126 Lockheed L-14 -08 Super Electra C/n 1500
N230MS Morane-Saulnier MS.230 C/n 1049 Marked NX230MS/229/3-S2

*** Unmarked N3N-3 C/n Unknown https://www.flickr.com/photos/jlt_egcc74/52578270275/in/album-72177720304619250/

N125JC Hiller YH-32 Hornet C/n 13
N888U Curtiss-Wright CW-22 N Falcon C/n 3707
N9016H UTVA Aero 3 A C/n 42 Coded 142

*** Unmarked WWI aircraft? C/n Unknown Unmarked

N61624 Curtiss 17 Oriole C/n 189 Unmarked
Unmarked High altitude balloon cabin C/n N/a
Unmarked 1922 Martin Dart C/n Unknown Unmarked
N4000B Douglas B-23 Dragon C/n 2743 Unmarked
Unmarked Lindstrand Gas Balloon Basket C/n Unknown
N17756 Sikorsky S-55 QT Whisper Jet C/n V55-400T
N83525 Boeing B-17 G Flying Fortress C/n 32166
N10290 Fairchild KR-31 C/n 358 Unmarked
Wings and bits of Kawasaki Ki-61 Hien (Swallow/Tony) C/n Unknown

*** The Second Jenny C/n https://www.flickr.com/photos/jlt_egcc74/52578355683/in/album-72177720304619250/

N240G General Aircraft Genairco Cabin C/n 17 Unmarked
N282DW Dewoitine D.26 C/n 10853 Marked 282
*** Douglas A-24 Dauntless Wreck C/n Unknown https://www.flickr.com/photos/jlt_egcc74/52577827256/in/album-72177720304619250/

*** Schneider DFS 108-14 SG-38 Schulgleiter? C/n https://www.flickr.com/photos/jlt_egcc74/52578354633/in/album-72177720304619250/

*** Gittens Flugesel ??? C/n Unknown https://www.flickr.com/photos/jlt_egcc74/52577826451/in/album-72177720304619250/

N29KW Boeing P2B -1S Superfortress C/n 13681 Marked N93129/84029 (Nose on public display)

Golden Hill Storage Facility Hangar
Unit furthest from the road

N3936A Consolidated PBY-5 A Catalina C/n 1520 Unmarked
N4302R AVIC Y-5 C/n 8339 Marked 8339 Appears to be the numbers 12A13 stencilled on the fuselage
G-AHMJ Cierva C.30 A C/n 730 Marked K4235/KX-H
N711ZY Schweizer-Grumman G-164 A Ag-Cat C/n 1183 Unmarked
Unmarked Tupolev Tu-2 C/n Unknown Unmarked. One of three Tupolev Tu-2 cockpits noted on todays visit.
N229VT Gloster Meteor F.4 C/n VT229 Marked VT229
N3160Y de Havilland DH-100 Vampire FB.6 C/n 649 Unmarked
Unmarked Tupolev Tu-2 C/n Unknown Unmarked

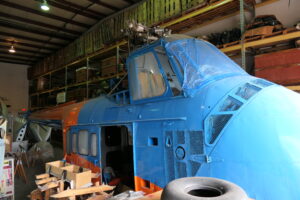

N111VA Sikorsky S-55 B C/n 55-433 Unmarked
4043 Mitsubishi A6M5 -52 Zero C/n 4043 Unmarked Coded 3-108

*** Unmarked Fairey Swordfish Mk 1 C/n Unknown Unmarked

Unmarked Tupolev Tu-2 x 2 Rear Sections. Cockpits separated. C/n Unknown Unmarked
N31650 EKW C-3605 C/n 275 Marked C-495
C-499 EKW C-3605 C/n 279
N2897S Lockheed F-5 G Lightning C/n 422-7765 Marked N6190C
N7537U Grumman F6F-3 Hellcat C/n A-4280 Unmarked
N2276Y Lavochkin La-11 Fang C/n 10142 Unmarked
N808U Supermarine Spitfire FR.XIVe C/n 6S/649186 Bare Frame. MV262 stencilled on it.
N5855S Grumman A-12 A Duck C/n Bu33614 Unmarked
N45YK Yakovlev Yak-9 P C/n 01-35 Unmarked

Final Hangar:
Hangar 1?

N5215V Vought F4U-4 Corsair C/n 9440 Marked 97286/5
599 Consolidated B-24 D Liberator GR.V C/n 1538 Marked 41-11825 Nose section only
N29KW Boeing P2B -1S Superfortress C/n 13681 Unmarked (Remainder of aircraft in the Golden Hill Storage Facility)
N255Y Brown B-2 Racer Replica C/n T-2 Coded 33
N8313 Curtiss-Wright Robin C/n 193 Marked NC8313
N94459 Consolidated-Fort Worth B-24 J Liberator C/n 1567 Marked 250551/RR-R
N56Y Howard DGA 5 Replica C/n 1 Marked NR56Y/39
N83Y Brown B-1 Racer C/n 3 Marked NR83Y/8
N513L Vultee BT-13 A Valiant C/n 11630 Marked 42-16621

*** Unknown Unknown Type C/n N/a Unmarked Cockpit only (probably mock up: https://www.flickr.com/photos/jlt_egcc74/52579308442/in/album-72177720304619250/

154418 Ling-Temco-Vought A-7 B Corsair II C/n B-58 Unmarked Nose section only
N90250 Beech UC-45 J Expeditor C/n 7802 Marked 29642 Nose section only

*** Unmarked Grumman S-2 Tracker C/n N/a Unmarked https://www.flickr.com/photos/jlt_egcc74/52579307822/in/album-72177720304619250/

N12048 Laird LCDW-500 Super Solution Replica C/n 001 Unmarked Coded 400
N3215M Granville Gee Bee Y Senior Sportster Replica C/n DM002 Marked NR718Y/7

N49128 Standard E-1 C/n Unknown Marked 49128
N349N Savoia-Marchetti S.56 C/n 12 Marked NC349N
1573 Morane-Saulnier MS.30 A1 C/n 1573 Marked MS1573/12
51 Large or Full Scale Model of Bachem Ba.349 Natter C/n Unknown Unmarked
N30425 Polikarpov I-16 Type 24 C/n 2421645 Marked 45 white
N26KW Grumman F3F -2 C/n Bu1028 Marked 1028/7-F-7
N1214N Grumman J2F-6 Duck C/n Bu33549 Coded 1-J-7
N2101 Granville Gee Bee R-2 Replica C/n GB-02 Marked NR2101/7
N105W Lockheed 5 C Vega C/n 72 Unmarked. Poor frame condition
N77V Granville Gee Bee Z-1 Replica C/n VT229 Marked NR77V/4
N434DH Airco DH-4 Replica C/n WWI Unmarked
N47FF Republic P-47 D Thunderbolt C/n 44-32814 Marked 8A-36
N476TE Supermarine Spitfire LF.XVIe C/n CBAF.IX.4610 Marked TE476/GE-D & NX4876TE
N921 North American P-51 D Mustang C/n 124-48260 Marked 413321/HO-P
I-TOMI Nardi FN.305 D C/n 007
N923 Curtiss P-40 N Warhawk C/n 33915 Marked 47923/NX923
Unmarked Fieseler Fi.103 A-1 C/n Unknown Unmarked
